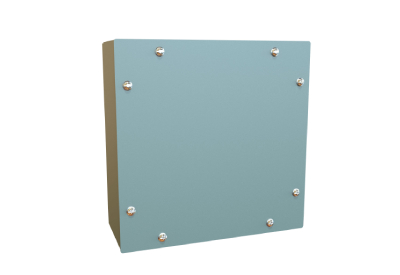

Type 3/12/4 Mild Steel Junction Box C3SC Series from Hammond Manufacturing

October 3, 2022

Type 3/12/4 Mild Steel Junction Box C3SC Series from Hammond Manufacturing

Application

  • Designed for use as a wiring box, junction box, terminal or pull box in indoor or outdoor applications where subject to windblown dust or rain.

Standards

  • UL 508A Listed; Type 3, 4, 12
  • cULus Listed per CSA C22.2 No 94; Type 3, 4, 12
  • Complies with
    • NEMA Type 3, 4 and 12
    • IEC 60529, IP66

Construction

  • 14 gauge steel body up to 12″x12″; 12 gauge body when 30″x30″ or larger
  • 14 gauge steel cover up to 24″x24″; 10 gauge cover when 16″x16″ or larger
  • Smooth, continuously welded seams without knockouts, cutouts, or holes
  • Captivated stainless steel cover screws thread into sealed wells
  • Seamless poured-in place gasket

Finish

  • Enclosure and cover are finished with an ANSI 61 gray powder coating inside and outside

More Information

Type 3/12/4 Mild Steel Junction Box C3SC Series
