NEW: The World’s First UL-Certified Type 3 Safety Light Curtain PSENopt II

MC PILZ New Worlds First UL Certified Type3 Safety Light Curtain 1 400

January 4, 2022



The second generation of safety light curtainsPSENopt II, provide safe access to the production process and provide finger, hand and body protection, depending on the requirement. The first Type 3 safety light curtains are specifically designed for applications up to PL d of EN/IEC 61496-1/-2. Type 4 light curtains are also available for applications up to PL e of EN/IEC 61496-1/-2. As the units are so robust, PSENopt II sensors provide protection against shock, collision and vibration and so are suitable for use in rugged industrial environments. The operator can evaluate the main causes and system defects responsible for the machine stop by means of the LEDs. Downtimes are reduced as a result.

The safety light curtains are available in lengths from 150 mm to 1800 mm. In combination with the safe small controllers PNOZmulti 2, the result is a safe, complete, one-stop solution. In the graphics software tool PNOZmulti Configurator you can select the light curtain block and configure your own individual safety light curtain application with just a few clicks. The Type 3 safety light curtains in accordance with EN/IEC 61496-1/-2 are specially designed for applications up to PL d. And have gained the UL certificate as the world’s first Type 3 safety light curtains! So you can be sure that by using PSENopt II you are making the right decision to protect your staff and your machinery – worldwide! We have been highly successful in working with UL International Germany.

Further information on EN/IEC 61496-1/-2 available here

MC PILZ New Worlds First UL Certified Type3 Safety Light Curtain 2 400



Why UL-certified?

With globalisation, the safe, seamless introduction of new products on to the world market is becoming ever more important. Product liability laws in the USA are a great deal stricter than they are in Europe or Asia for example. UL-certified devices meet the national safety standards of the USA and Canada. The certification procedure in accordance with North American standards for electrical goods simplifies market access considerably. Nothing else stands in the way of use in the USA and Canada. It speeds up commissioning on-site. Machine builders who export into these markets benefit from this in particular.



Complete one-stop solution

In conjunction with safe control technology from Pilz, PSENopt II units offer a safe, economical and complete solution for your plant. Flexible to use, rapid installation, absence of dead zones and shock resistance of 50g mean that PSENopt II units are predestined for use in an everyday industrial environment. With their 5-pin connector, they can be connected directly to the decentralised modules PDP67. High-quality accessories such as post protectors, mirror columns, PSENopt II lockout guarantee carefree application.



Your application advantages

  • •Certified safety: Type 3 safety light curtains for applications up to PL d of EN / IEC 61496 with UL and TÜV certificate
  • •For finger, hand and body protection, both Type 3 and Type 4 safety light curtains are available
  • •User-friendly diagnostics via LEDs to reduce downtimes

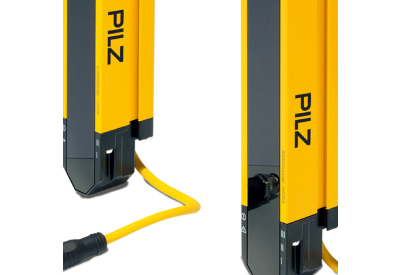

MC PILZ New Worlds First UL Certified Type3 Safety Light Curtain 4 400

Safety light curtains for finger, hand and body protection – the benefits

  • •Highly robust for protection against shock, collision and vibration
  • •User-friendly diagnostics via LEDs to reduce downtimes
  • •Fast, simple assembly, installation and commissioning
  • •Coding for greater flexibility when installing the light curtain sensors
  • •Several sides of a danger zone secured using PSENopt II mirror columns
  • •Adjustable base unit offers additional protection against strong mechanical impact and enables the mirror column to be adjusted in uneven conditions
  • •One-stop shop: complete, economical solution with configurable control systems PNOZmulti 2 and an extensive range of accessories
  • •Highly robust for protection against shock, collision and vibration
  • •User-friendly diagnostics via LEDs to reduce downtimes
  • •Fast, simple assembly, installation and commissioning
  • •Coding for greater flexibility when installing the light curtain sensors
  • •Several sides of a danger zone secured using PSENopt II mirror columns
  • •Adjustable base unit offers additional protection against strong mechanical impact and enables the mirror column to be adjusted in uneven conditions
  • •One-stop shop: complete, economical solution with configurable control systems PNOZmulti 2 and an extensive range of accessories

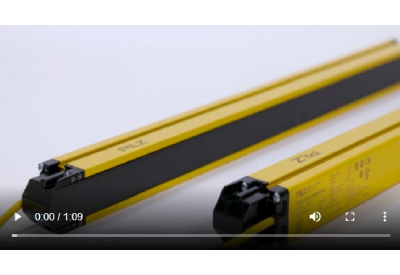

MC PILZ New Worlds First UL Certified Type3 Safety Light Curtain 3 400



Safety light curtain features

  • •Compliant and approved in accordance with EN/IEC 61508 and EN/IEC 614961/-2
  • •Can be used in applications up to PL d / PL e of EN ISO 13849-1 and SIL CL 2/SIL CL 3 of EN/IEC 62061
  • •Safety for finger, hand and body protection
  • •Lengths of 150 mm to 1800 mm
  • •Robustness of 50 g
  • •Absence of dead zones
  • •Integrated coding
  • •Complete solution with PDP67 (plug and pin compatible), PNOZmulti 2, PNOZ X2.8p, PNOZs3



Light curtains PSENopt II application areas

Protect your staff and your capital goods with the safety light curtains PSENopt II! The light curtains protect the danger zones with an invisible protected field of infrared beams. If the infrared light beam is interrupted, a safe shutdown command is issued immediately. PSENopt II safety light curtains are suitable in industry particularly for manual workstations, access guarding, inserting/removing materials or material handling next to robots.



Safeguarding danger zones with electrosensitive protective equipment – learn more here

Learn more about the diverse application ranges of safety light curtains! For more information on safety light curtains and other PILZ products, click here
