Safe Operation of Automated Guided Vehicle Systems

MC PILZ Safe Operation of AGVs 1 400

January 13, 2022



Where a human shares a workspace with an automated guided vehicle, i.e. a machine, there are particular requirements for safety concepts; human and machine must be able to operate smoothly and safely within the same environment. PILZ takes a holistic look at your automated guided vehicle system. They get on board as early as the design phase, when the system concept is developed, and provide support for your projects right through to commissioning. That way they ensure that safety and productivity are guaranteed when your automated guided vehicle systems are operated.

Your requirements

As an operator or manufacturer of automated guided vehicles or vehicle systems (multiple automated guided vehicles), you must comply with the specifications of ISO 3691-4. It defines the requirements of the safety functionsand specifies how to validate the vehicles’ automated functions.

ISO 3691-4 also specifies the required performance level for the vehicle monitoring functions, various operating modes and the brake controller.

Standard ISO 3691-4 for automated guided vehicle systems and autonomous mobile robots

The standard ISO 3691-4 specifies a clear procedure for achieving safety on an automated guided vehicle system, for both manufacturers and operators. It defines an automated guided vehicle system as a combination of one or more automated guided vehicles or autonomous mobile robots and the plant environment.

The 2020 publication of the standard ISO 3691-4 for automated guided vehicle systems and autonomous mobile robots was a reaction to the rapid development of new technologies in the field of automated vehicles. The ISO standard was long overdue, as its predecessor (EN 1525:1997) had been published 23 years previously. It can now be regarded as the most important international standard for automated guided vehicle systems. In Europe, ISO 3691-4 is supplemented by the standard EN 1175:2020, which refers to specific electrical aspects of self-propelled industrial trucks (including automated guided vehicle systems).

In addition to the international launch of ISO 3691-4, the USA also updated the relevant standards in 2019 and 2020: ANSI/ITSF B56.5:2019 (automated guided vehicle systems) and ANSI/RIA R15.08-1:2020 (autonomous mobile robots).

Learn more about the International Standards here

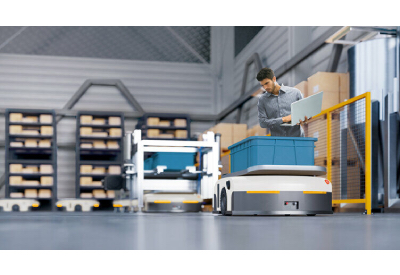

MC PILZ Safe Operation of AGVs 2 400jpg



PILZ services

Do you use automated guided vehicles or vehicle systems in your production hall or in intralogistics applications? Then you need to ensure that your system is not only designed safely, but is also applied safely and above all productively, taking into account all the spatial and infrastructural conditions.

PILZ’s “Safe operation of automated guided vehicle systems” service offers a complete package, right through to the international conformity assessment.



Select the appropriate service:



Design risk assessment (DRA)

MC PILZ Safe Operation of AGVs 3 400png

  • Review of the risk assessment conducted by the manufacturer of the automated guided vehicle (on site or remotely)
  • Examination of the essential design features regarding application of the automated guided vehicle
  • Check for compliance with relevant standards and regulations/guarantee that the automated guided vehicle complies with legal requirements
  • PILZ delivers the following results:
  1. Design risk assessment (DRA) of the automated guided vehicle, based on design drawings and information you provide on the application of the automated guided vehicles
  2. Design review report for the automated guided vehicle
  3. List of the necessary/recommended measures to increase safety and productivity



Optional factory acceptance test at the manufacturer’s (FAT)

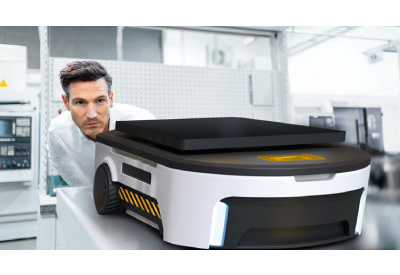

MC PILZ Safe Operation of AGVs 4 400jpg

  • Detailed analysis of the key safety functions of an automated guided vehicle
  • PILZ delivers the following documents:
  1. Detailed report on the factory acceptance test
  2. List of the necessary/recommended measures to increase safety and productivity

This service is also of interest to manufacturers of automated guided vehicles. PILZ can advise you on specific safety functions for navigation, control, brakes or speed monitoring. And they can supply the relevant proof of conformity for your customers.



Site acceptance test (SAT)

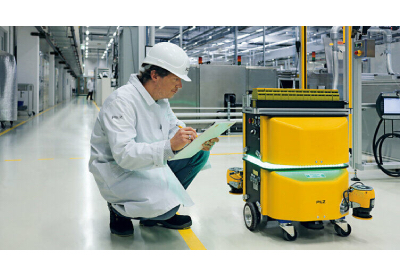

MC PILZ Safe Operation of AGVs 5 400jpg

  • Full risk assessment of the whole automated guided vehicle system
  • Examination of all/selected automated guided vehicles that are in use
  • Validation of the whole application, including inspection of its environment
  • Advice on all necessary measures for the user on site
  • PILZ delivers the following documents:
  1. Risk assessment
  2. Site acceptance test report
  3. List of measures

Your benefits at a glance

  • Save time and costs with us as your safety and automation partner for the entire application.
  • PILZ will guarantee that your applications meet the requirements of ISO 3691-4. If necessary, they can confirm this in the form of a conformity assessment.
  • PILZ will check the safety of automated guided vehicle systems even at the early stages of the procurement process. That way you avoid additional costs and save time.
  • PILZ can ensure you have the optimum combination of material usage and maximum safety



To learn more about PILZ’s solutions for Automated Guided Vehicle Systems, click here
