Find the Right Safety Relay with Pilz
January 29, 2025
The modular safety relay myPNOZ compliments Pilz’s existing range of safety relays. But when do you use myPNOZ? And when is PNOZsigma the right choice? Learn how to find the right safety relay.
Find the right PNOZ safety relay for your application!
Looking for the optimum PNOZ safety relay for your application? Want to make your automated plant safer? Then discover the perfect solution right now, in just a few steps!
The features of Pilz’s safety relays at a glance
Pilz’s safety relays are distinguished by a variety of supply voltage ranges, the number of safety contacts, the number of terminals or the ability to plug in terminals.

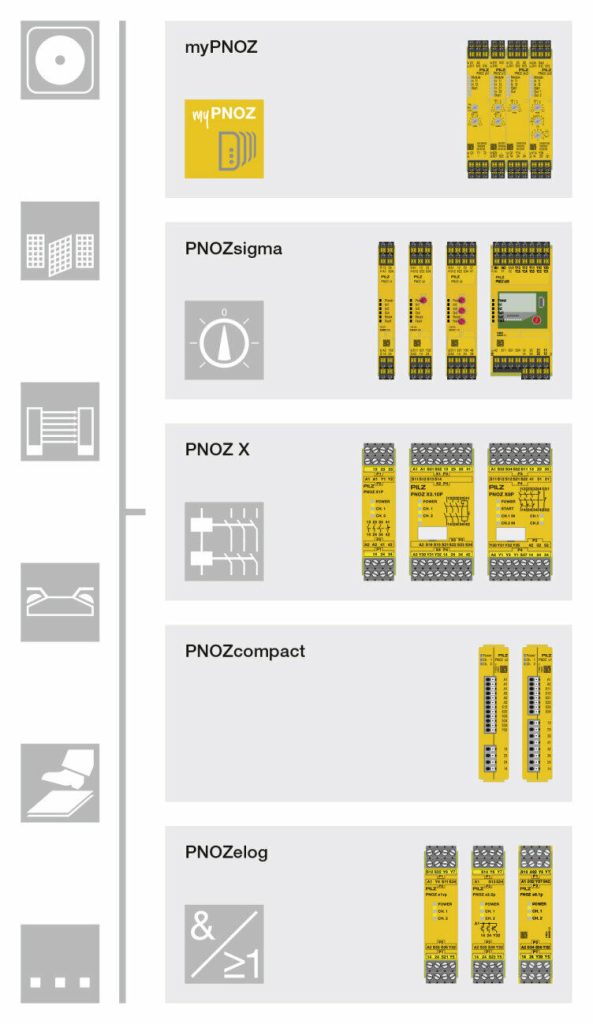

Based on their different features and functionalities, Pilz’s products can be divided into the following product groups:
myPNOZ
- Safety relay with an internal combination logic
- Created individually in myPNOZ Creator
- Tailor-made in batch size 1
- Quick and easy commissioning
PNOZsigma
- Maximum function in a minimum width
- Adjustable operating modes and times
- Scalable thanks to a modular design
PNOZ X
- Safety for every function
- Electromechanical, floating
- With wide-voltage power supply unit
PNOZcompact
- Square, simple, yellow
- Ideal for high-volume series machine manufacturers
- Basic function of a safety application
PNOZelog
- Easy to link
- Non-wearing
- Expanded diagnostics

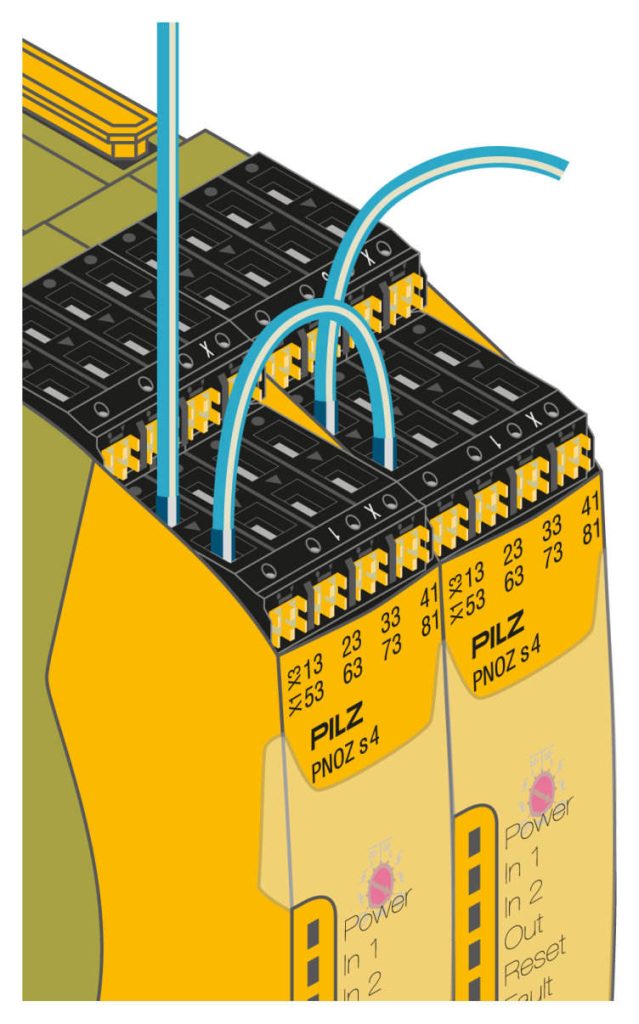

Save costs with push-in technology
The unit types with push-in technology offer a great advantage in terms of both economy and safety. They help you to cut costs due to short commissioning and service times.
The following product ranges are available with push-in, spring-loaded terminals:
- Safety relays PNOZsigma, PNOZ X, PNOZcompact, PNOZelog
- Monitoring relays PMDsigma
- Line monitoring devices PLIDdys
- Modular safety relay myPNOZ
- Small controllers PNOZmulti 2, PNOZmulti Mini, PNOZmulti
Easy to service through simple operation
- Connection of all commercially available cables with or without wire-end ferrule
- Quick and easy wiring
- Double connection option per pole; can be opened individually or both at the same time (beneficial when installing or changing the wiring)
- Cost savings when replacing devices, since no rewiring is required and potential wiring errors during rewiring are eliminated
- Separate opening for voltage testing
- Coded plugs for easy and unmistakeable installation and increased handling safety during servicing
- Maintenance-free due to defined clamping force; unlike screw terminals, no need to retighten regularly; no follow-up costs due to retightening of the terminals
- High contact reliability even against strong vibrations and shocks
- Further looping of potentials possible without any problems
The optimum safety relay for every application
In addition to the classic E-STOP function, the safety relays now monitor safety gates, light barriers, two-hand controls, pressure sensitive mats, muting, standstill, speed and many other safety functions.
Pilz’s Product Range: Safety Relays
 |
PNOSsigma safety relay / safety relays |
 |
PNOZ X safety relays |
 |
PNOZcompact safety relays For manufacturers of production machines with high unit output, recurring standardized functions and for monitoring E-STOP, safety gates or light barriers/light grids. More Information |
 |
PNOZelog safety relay/safety relays Easy to link and wear-free, with extended diagnostics: Pilz’s safety PNOZelog. More Information |
 |
Line monitoring devices Line monitoring devices provide a special circuit protection or connection test, to guarantee that a signal is unambiguous As a result, faulty wiring, errors, or tampering can be excluded. More Information |
 |
Modular safety relay myPNOZ Easy-to-use, modular safety relay with an internal combination logic for monitoring emergency stop, safety light curtains, or two-hand controls IIIA/C for example in small to medium applications with 2 to 30 safe input functions. More Information |
More Information
Do you need further information? Read more in chapter 5.1. The German-language Safety Compendium contains the latest knowledge on machinery safety.
