New Pneumatic Innovations from SMC: 2025 Product Highlights

July 21, 2025

New Pneumatic Innovations from SMC: 2025 Product Highlights

SMC continues to lead industrial automation with groundbreaking pneumatic technologies. These new releases are designed to boost connectivity, reduce energy use, and improve system performance across diverse manufacturing environments. As an authorized SMC distributor, Proax proudly presents the latest additions that can transform your operations.

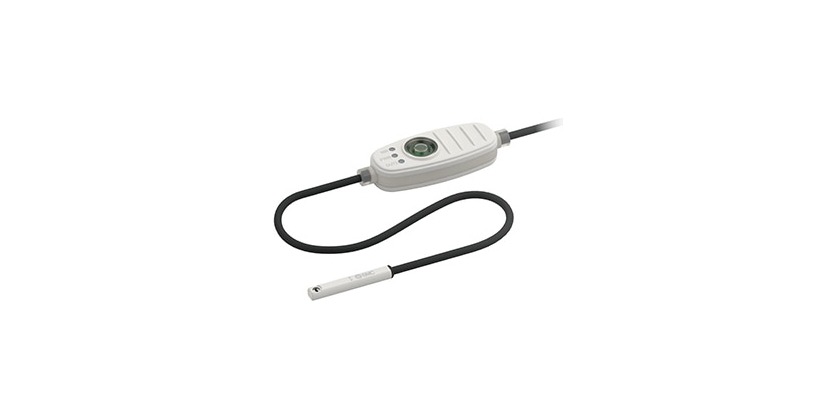

D-MPG Compact Position Sensor

The D-MPG series delivers precise stroke position detection for pneumatic grippers and mini actuators, supporting high-performance automation in tight spaces. With a compact, modular design that separates the sensor head from the teach unit, it enables flexible integration into precision-driven applications.

New Pneumatic Innovations from SMC: 2025 Product Highlights

Key Applications:

  • Part presence/absence detection
  • Dimensional verification
  • Position-based sorting
  • High-precision assembly
  • Multi-point stroke detection

Technical Highlights:

  • Repeatability: ±0.1 mm
  • Measurement Range: 25 mm (expandable to 35 mm)
  • Output Types: IO-Link, Analog, Switch
  • Quick and intuitive setup
  • IP67-rated for harsh environments

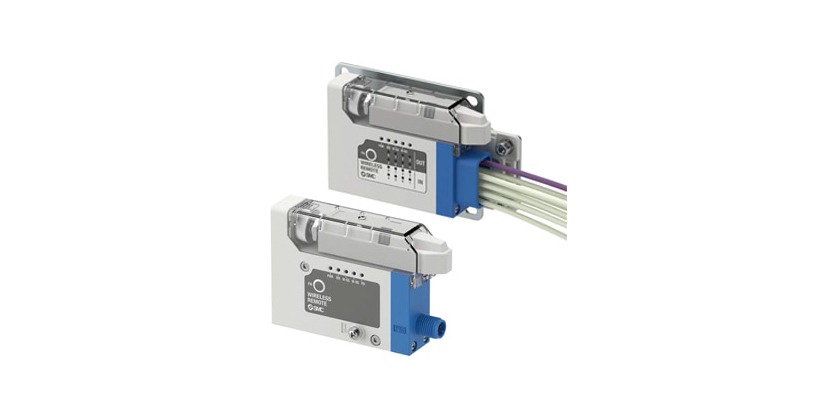

EXW1-R Wireless Analog + Valve Manifold

The EXW1 series is a compact, lightweight wireless communication module ideal for industrial robots and mobile fixtures. Designed for harsh or obstructed environments, it supports high-speed communication and flexible I/O configurations.

New Pneumatic Innovations from SMC: 2025 Product Highlights

Key Benefits:

  • High-speed data transmission up to 1 Mbps (EXW1-RD model)
  • External antenna support for shielded or obstructed installations
  • Configurations: Input, Output, or Mixed I/O
  • Digital operation (EXW1 is a digital-only version of the original analog system)

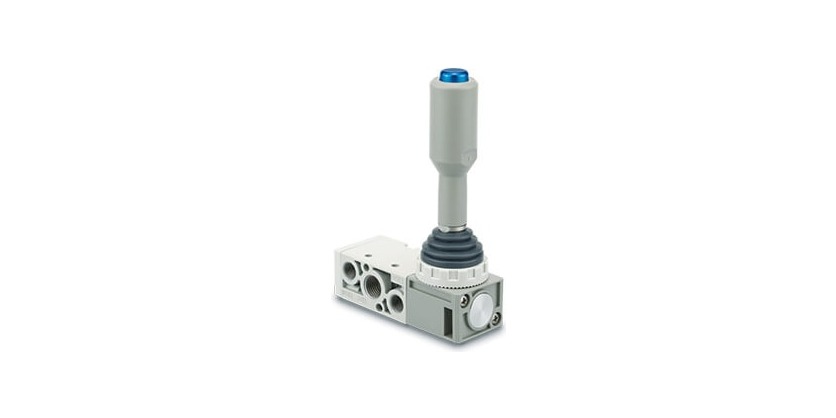

VHL Lever Hand Valve

The VHL series delivers reliable manual control in a compact form factor — up to 58% smaller than the VH200. Its vertical handle improves ergonomics, and multiple operation types provide design flexibility.

New Pneumatic Innovations from SMC: 2025 Product Highlights

Highlights:

  • 5-port vertical lever valve for space-constrained panels
  • Up to 45% weight reduction
  • 58% smaller footprint than previous models
  • 18.6 mm reduction in internal mounting height
  • 73% increase in flow rate
  • Operation Types: Spring return, Detent, Detent with shift-prevention lock

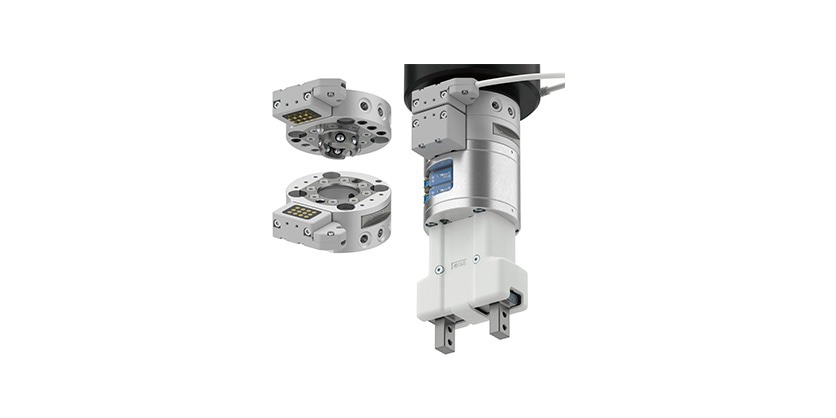

RMTA Tool Changer for Cobots

The RMTA series is designed for quick and secure tool changes in collaborative and light industrial robotics. With its compact, lightweight construction, it eliminates bulky flanges and maximizes payload efficiency.

New Pneumatic Innovations from SMC: 2025 Product Highlights

Key Features:

  • ISO 9409-1 compliance for universal compatibility
  • Payload options: 5 kg, 10 kg, 20 kg
  • M8 connector available for direct tool I/O interface
  • Built-in drop prevention for enhanced safety and reliability
New Pneumatic Innovations from SMC: 2025 Product Highlights

ZKJ Positive Pressure Units

Maintains contamination control in cleanrooms with energy-efficient pressure management.

New Pneumatic Innovations from SMC: 2025 Product Highlights

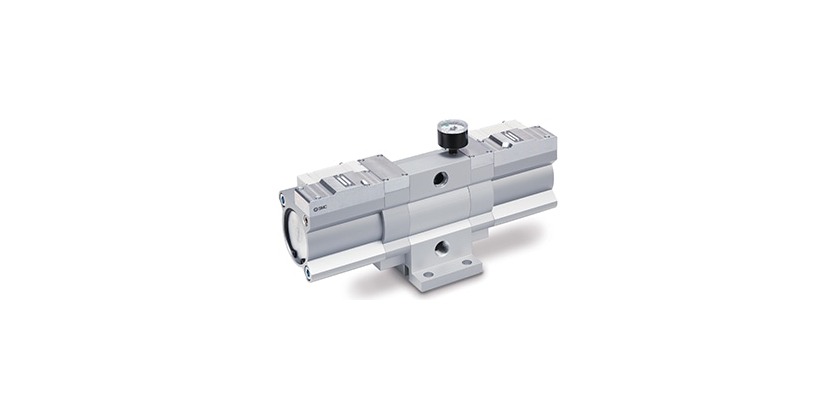

VBAE Booster Regulator

Delivers higher pressure output with less air – perfect for cutting energy costs without performance loss.

New Pneumatic Innovations from SMC: 2025 Product Highlights

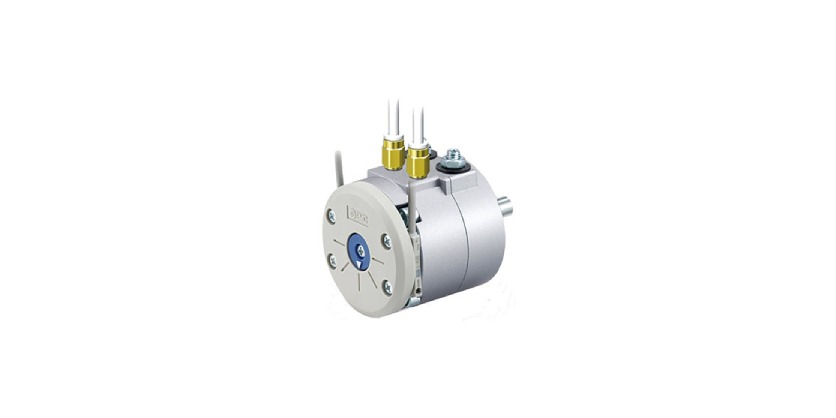

CRB Double Vane Rotary Actuators

Enhanced torque and durability for packaging, positioning, and material handling applications.

Why Partner with Proax for SMC Pneumatics?

  • ✅ Authorized Distributor with direct access to SMC’s latest innovations
  • ✅ 13 Canadian locations + 1 U.S. branch for local expertise and fast support
  • ✅ In-house pneumatic engineers ready to assist with custom designs
  • ✅ Tailored solutions to fit your automation goals — not just off-the-shelf components
  • ✅ Trusted by industry leaders in food, pharma, automotive, and beyond

Let’s talk about your automation goals and how SMC’s newest technologies can move you forward. Contact Proax to start a conversation that goes beyond product catalogs.
